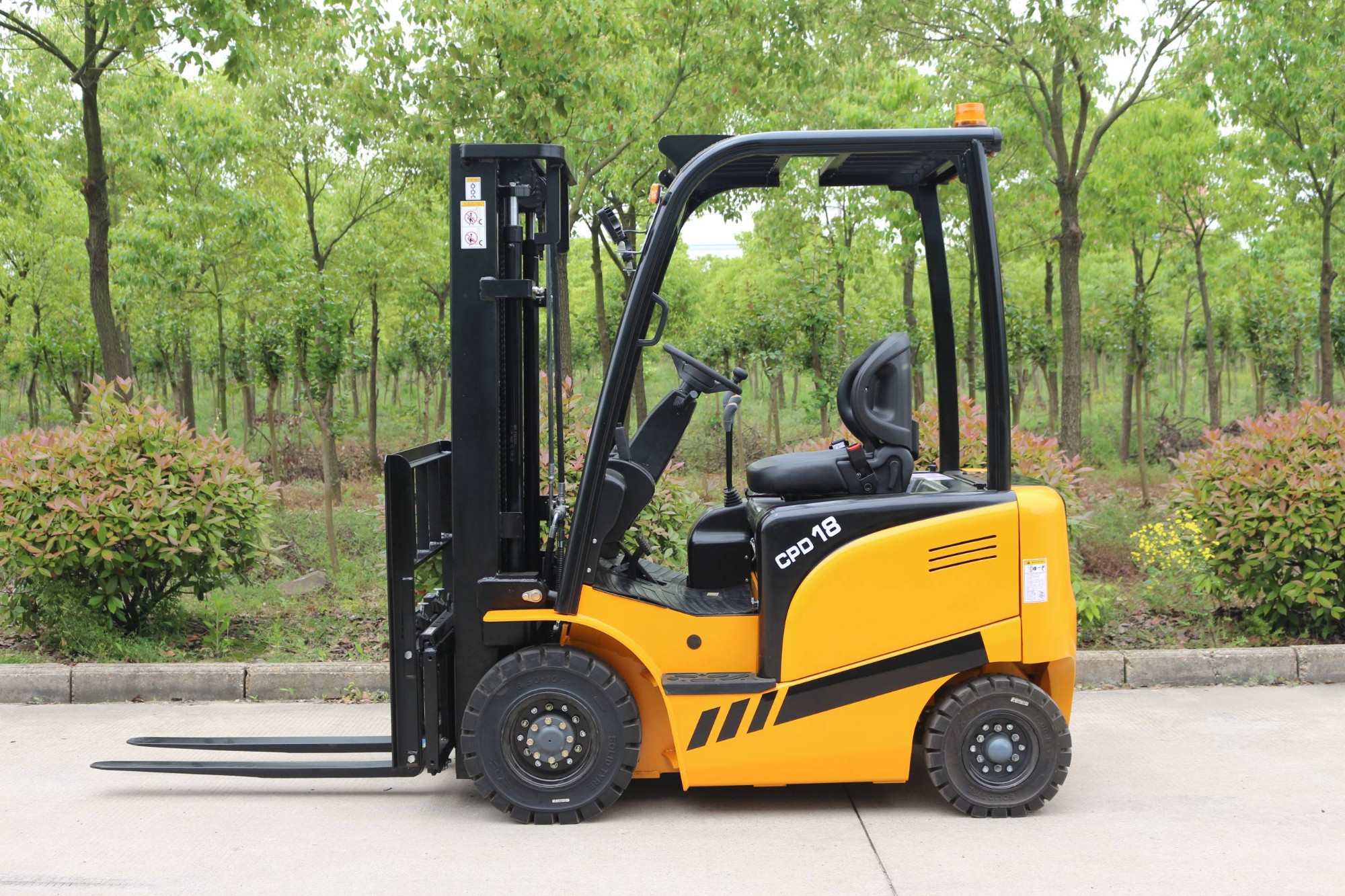

Electric Forklift 1ton 1.8ton

Highlights

1. Power System

Equipped with original imported American Curtis electric control system;

High voltage and large capacity battery can supply the forklift with strong power;

DC or AC motors are optional according to customers’ requirements.

2. Security System

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

3. Lighting System

Equipped with full set of LED lamps, which are brighter and energy saving.

Parameters

Model	-	CPD10	CPD15	CPD18
Operation type	-	Drive in seat	Drive in seat	Drive in seat
Load capacity	kg	1000	1500	1800
Load center	mm	500	500	500
Power type	-	Electric	Electric	Electric
TIRE/CHASSIS
Tire type	-	Pneumatic tire	Pneumatic tire	Pneumatic tire
Number of wheels	-	2X/2	2X/2	2X/2
Tire size	-	6.50-10-12PR/5.00-8-5PR	6.50-10-12PR/5.00-8-5PR	7.00-12-12PR/18X7-8PR
Service brake	-	Hydraumatic pedal	Hydraumatic pedal	Hydraumatic pedal
Parking brake	-	Mechanical manual	Mechanical manual	Mechanical manual
SIZE
Mast tilt	°	6/12	6/12	6/12
Mast height after mast fall	mm	1995	1995	1995
Fork lift max. height	mm	4025	4025	4025
Free lift height	mm	140	140	140
Standard mast height	mm	3000	3000	3000
Overhead guard height	mm	2100	2100	2100
Overall length	mm	2035	2035	2035
Fork overhang	mm	400	400	400
From the rear	mm	335	335	335
Wheelbase	mm	1360	1360	1360
Min. distance over the ground	mm	110	110	110
Tread	mm	912/920	912/920	912/920
Vehicle width	mm	1090	1090	1090
Fork size	mm	1070x122x45	1070x122x45	1070x122x45
Channel width	mm	3797	3797	3739
Turning radius	mm	1997	1997	1997
PERFORMANCE
Walking speed, load/without	km/h	13/15	13/15	13/15
Lifting speed, load/without	m/s	240/450	240/450	240/450
Dropping speed, load/without	m/s	480/420	480/420	480/420
Max. traction, load	N	15000	15000	15000
Max. grade ability, load/without	%	12/15	12/15	12/15
DRIVE
Drive motor power	kw	8	8	8
Lifting motor power	kw	7.5	7.5	7.5
Level voltage/capacitance	v/ah	48/450	48/450	48/450
OTHERS
Drive system	-	DC/AC	DC/AC	DC/AC
Electric control system	-	Curtis/Inmotion	Curtis/Inmotion	Curtis/Inmotion
Total weight	kg	2960	3120	3200
