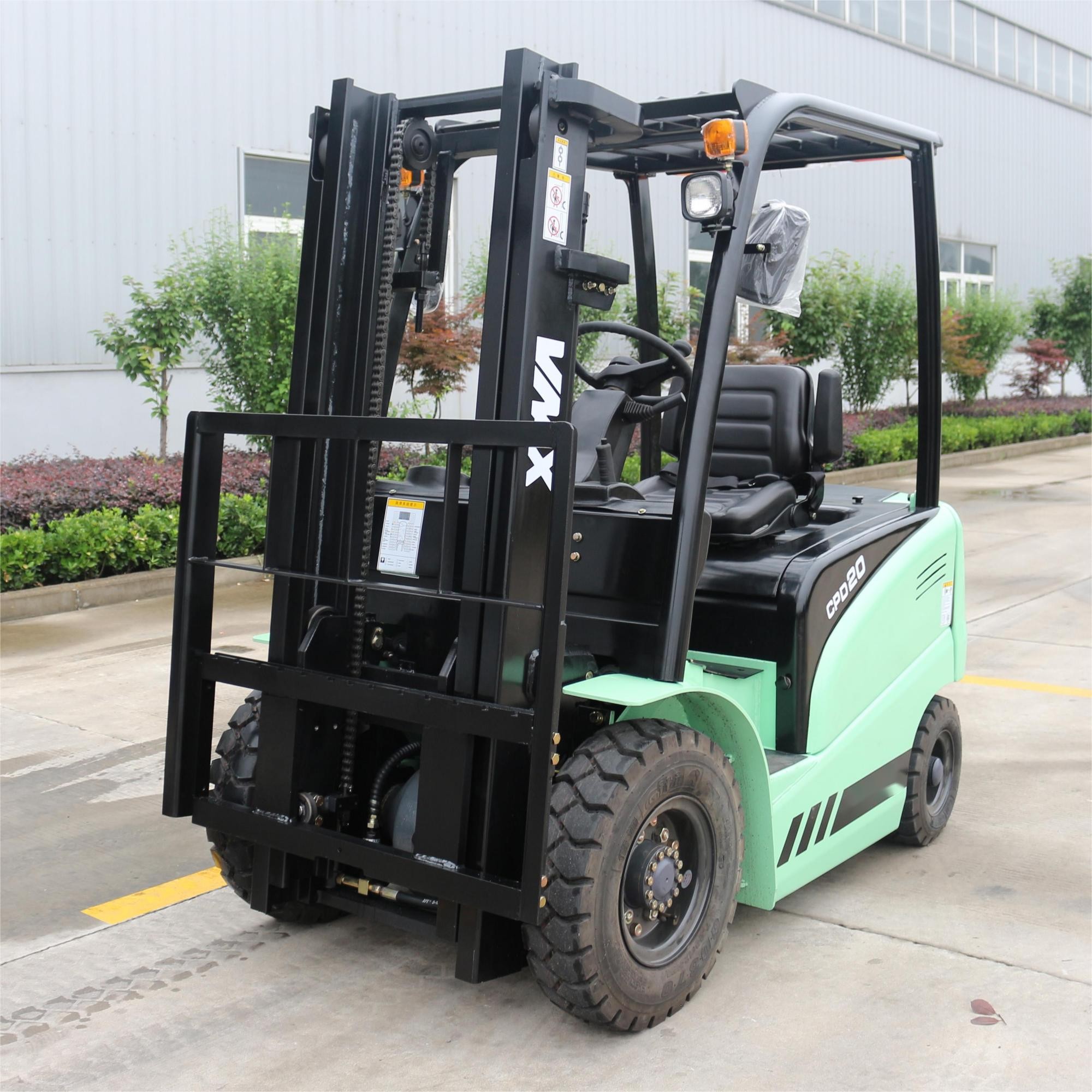

Electric Forklift 2ton

Highlights

1. Power System

Equipped with original imported American Curtis electric control system;

High voltage and large capacity battery can supply the forklift with strong power;

DC or AC motors are optional according to customers’ requirements.

2. Security System

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

3. Lighting System

Equipped with full set of LED lamps, which are brighter and energy saving.

Parameters

Model	-	CPD20
Operation type	-	Drive in seat
Load capacity	kg	2000
Load center	mm	500
Power type	-	Electric
TIRE/CHASSIS
Tire type	-	Pneumatic tire
Number of wheels	-	2X/2
Tire size	-	7.00-12-12PR/18X7-8PR
Service brake	-	Hydraumatic pedal
Parking brake	-	Mechanical manual
SIZE
Mast tilt	°	6/12
Mast height after mast fall	mm	1995
Fork lift max. height	mm	4045
Free lift height	mm	150
Standard mast height	mm	3000
Overhead guard height	mm	2098
Overall length	mm	2353
Fork overhang	mm	468.5
From the rear	mm	384
Wheelbase	mm	1500
Min. distance over the ground	mm	110
Tread	mm	970/950
Vehicle width	mm	1170
Fork size	mm	1070x125x45
Channel width	mm	4040
Turning radius	mm	2172
PERFORMANCE
Walking speed, load/without	km/h	12/14
Lifting speed, load/without	m/s	320/450
Dropping speed, load/without	m/s	476/426
Max. traction, load	N	18000
Max. grade ability, load/without	%	13/15
DRIVE
Drive motor power	kw	11
Lifting motor power	kw	12
Level voltage/capacitance	v/ah	48/630
OTHERS
Drive system	-	DC/AC
Electric control system	-	Curtis/Inmotion
Total weight	kg	4214
