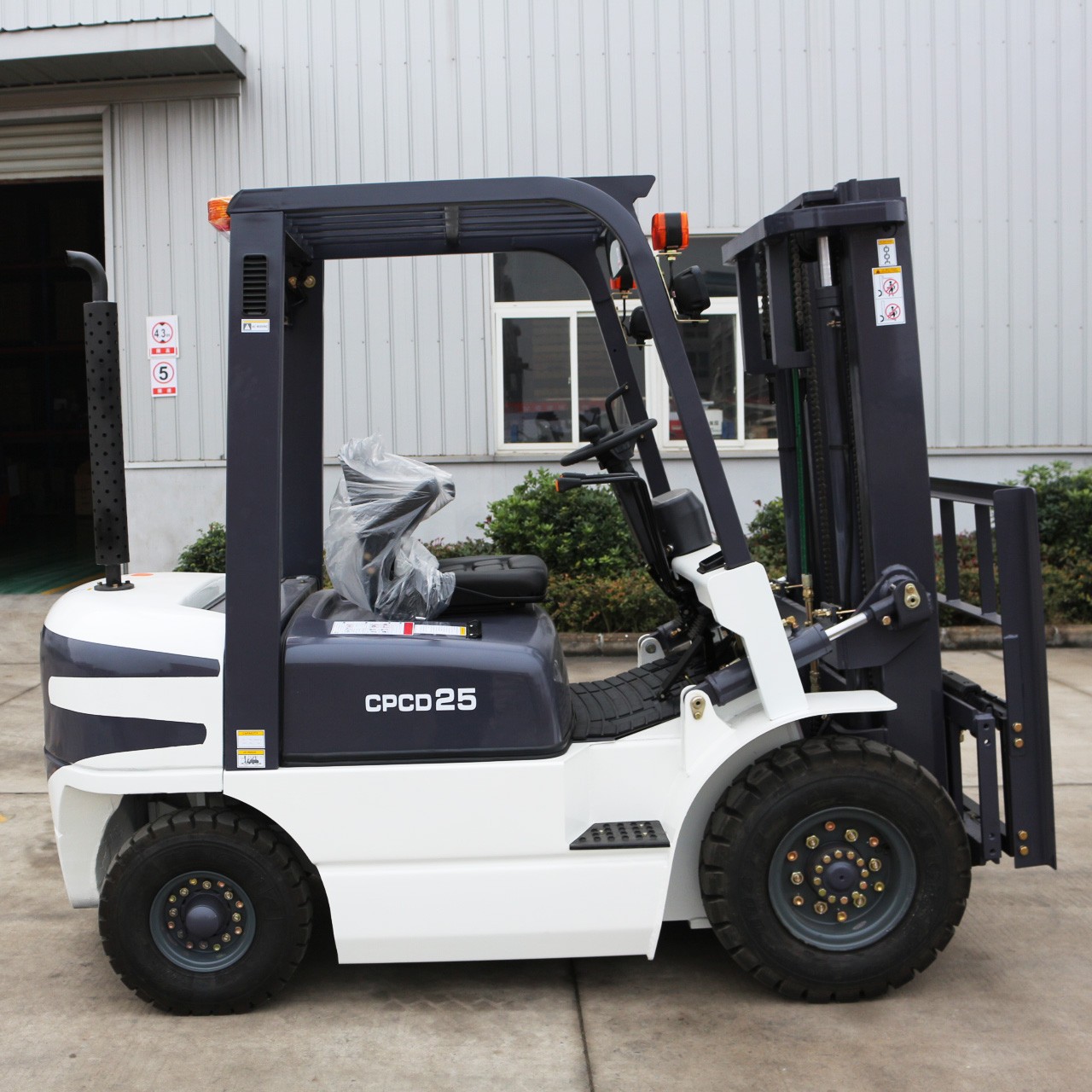

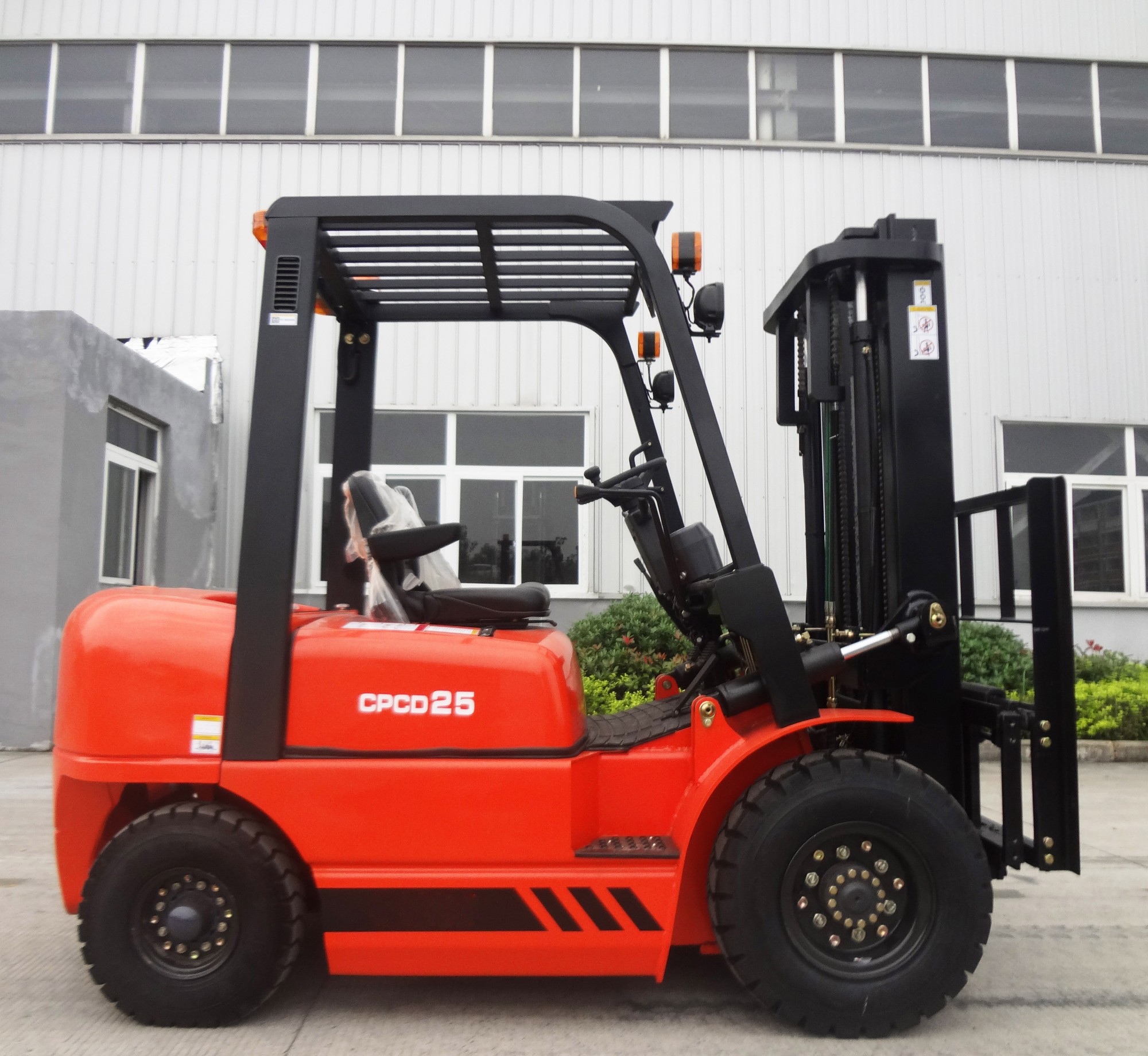

Diesel Forklift 2.5ton

Model

UNIT

CPCD25

Power type

-

Diesel

Rated capacity

kg

2500

Load center

mm

500

Operator type

-

Drive in seat

SIZE

Max. lift height of mast with load-backrest

mm

4030

Max. lift height of fork(standard)

mm

3000

Height of mast(standard)

mm

1995

Free lift height(standard)

mm

170

Height of load-backrest

mm

1010

Distance from seat to overhead guard

mm

1005

Overhead guard height

mm

2070

Overall length without fork

mm

3480/2560

Front overhang

mm

477

Rear overhang

mm

498

Wheel base

mm

1600

Height of traction pin

mm

290

Min. ground clearance

mm

110

Overall width

mm

1170

Distance between forks

mm

1024/200

Tread(front/rear)

mm

970/970

Min. turning radius(outside)

mm

2170

Min. turning radius(inside)

mm

160

Min. intersecting aisle

mm

2280

Mast tilt angle

deg

6°/12°

Fork size

mm

1070x100x45

PERFORANCE

Max. drive speed(with/without full load)

km/h

18/20

Lifting speed(with/without full load)

mm/s

450/490

Lowering speed(with/without full load)

mm/s

520/490

Max.tractive force(with/without full load)

KN

21/15.2

Max. grade ability(with/without full load)

%

23/20

WEIGHT

Total weight

kg

3649

Weight distribution full load(front/rear)

kg

5562/618

Weight distribution zero load(front/rear)

kg

1420/2208

WHEELS AND TYRES

Quantity of wheels

-

2X/2

Type of tyres

-

Pneumatic tyres

Front tyres

-

7.00-12-12PR

Rear tyres

-

6.00-910PR

Driving brake

-

Hydraumatic pedal

Parking brake

-

Machanical manual

CONTROL DEVICE FOR DRIVING AND TRANSMITTING

Battery

V/AH

12/80

Engine model

-

4D30G31

Rated power

kw/rpm

36.8/2650

Rated torque

N.m/rpm

174/1800~1900

No. of cylinder

-

4-95x105

Displacement

L

2.98

Fuel tank capacity

L

60

No. of speed transmission

-

1-1 hand shift transmission/2-3 power shift transmission
