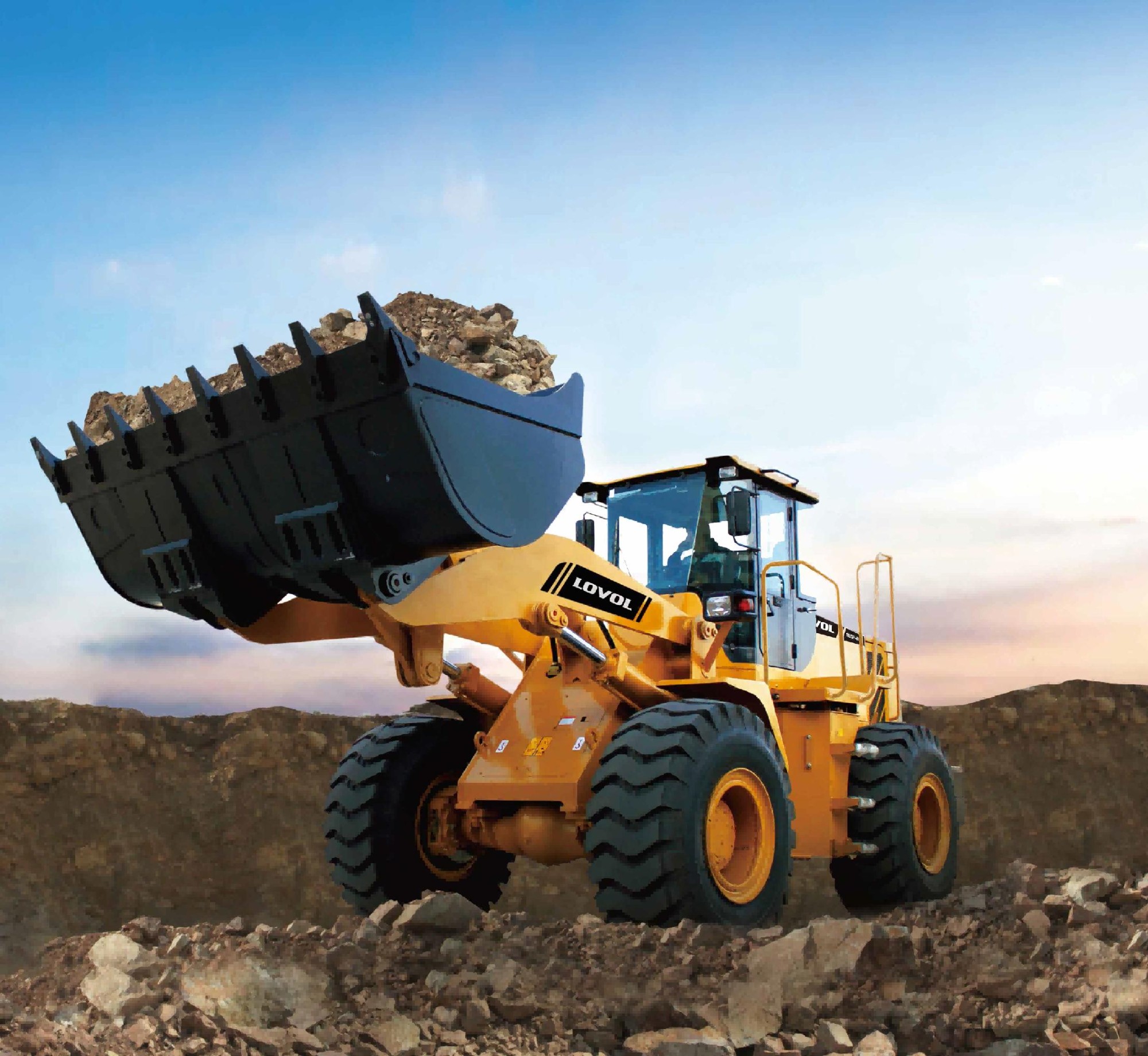

Wheel Loader FL955F-II

Highlights

*Adopt medium wheelbase and front articulation design which have small turning

radius, flexible operation & high efficiency features. It is more suitable for loose

materials application.

*The electrical circuit adopts waterproof connector to ensure the electrical system

work more reliable in harsh working conditions.

*Adopt ergonomic design cab to provide broad space and comfortable operation.

360° flat view glass windows with wide vision, more beautiful and comfortable.

*Adopt proven reinforced heavy-duty axle and integrated coverage of clipper which

is more reliable and durable.

Parameters

Item	Unit	Parameter
Rated Power	kW	162
Operating Weight	kg	16620
Bucket Capacity	m³	3
Engine Model	-	WEICHAI WD10G220E23
Max. Breakout Force	kN	175
Rated Load	kd	5000
Max. Traction Force	KN	160
Max. Gradeability	°	30
Max. Dump Clearance	mm	3065
Dump Reach	mm	1160
Wheel Tread	mm	2250
Wheelbase	mm	2920
Overall Dimension（L×W×H）	mm	7700×2980×3430
Type	-	Double pump flow conffluence, load-sensing hydraulic system
Steering Angle Each Direction	-	35º
Min. Turning Radius	mm	6850
Working Pressure	Mpa	18
Boom Lifting Time	s	5.6
Total Cycle Time	s	10.2
Fuel Tank	L	270
Hydraulic Tank	L	145
Engine Oil	L	22L
