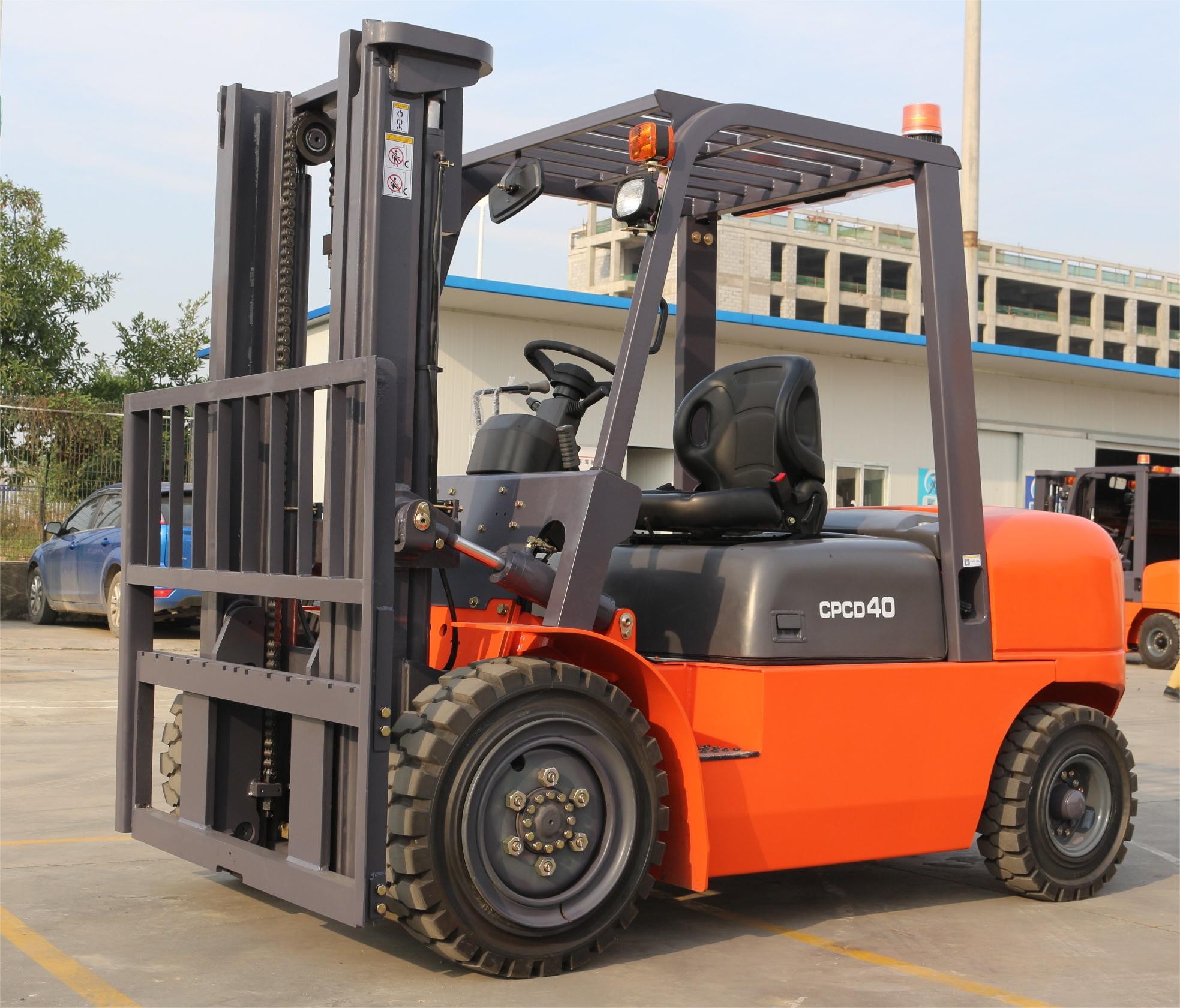

Diesel Forklift 4ton

Model

UNIT

CPCD40

Power type

-

Diesel

Rated capacity

kg

4000

Load center

mm

500

Operator type

-

Drive in seat

SIZE

Max. lift height of mast with load-backrest

mm

4275

Max. lift height of fork(standard)

mm

3000

Height of mast(standard)

mm

2150

Free lift height(standard)

mm

150

Height of load-backrest

mm

1235

Distance from seat to overhead guard

mm

1000

Overhead guard height

mm

2105

Overall length without fork

mm

2895

Front overhang

mm

500

Rear overhang

mm

495

Wheel base

mm

1900

Height of traction pin

mm

330

Min. ground clearance

mm

130

Overall width

mm

1410

Distance between forks

mm

1290/260

Tread(front/rear)

mm

1160/1065

Min. turning radius(outside)

mm

2700

Min. turning radius(inside)

mm

230

Min. intersecting aisle

mm

2685

Mast tilt angle

deg

6°/12°

Fork size

mm

1070x130x50

PERFORANCE

Max. drive speed(with/without full load)

km/h

18/19

Lifting speed(with/without full load)

mm/s

350/380

Lowering speed(with/without full load)

mm/s

350/400

Max.tractive force(with/without full load)

KN

20/18

Max. grade ability(with/without full load)

%

15/18

WEIGHT

Total weight

kg

5310

Weight distribution full load(front/rear)

kg

8380/930

Weight distribution zero load(front/rear)

kg

2120/3190

WHEELS AND TYRES

Quantity of wheels

-

2X/2

Type of tyres

-

Pneumatic tyres

Front tyres

-

250-15-16PR

Rear tyres

-

6.50-10-10PR

Driving brake

-

Hydraumatic pedal

Parking brake

-

Machanical manual

CONTROL DEVICE FOR DRIVING AND TRANSMITTING

Battery

V/AH

12/80

Engine model

-

Xinchang A498BPG

Rated power

kw/rpm

45/2500

Rated torque

N.m/rpm

198/1800

No. of cylinder

-

4-98x105

Displacement

L

3.168

Fuel tank capacity

L

70

No. of speed transmission

-

1-1 hand shift transmission/2-3 power shift transmission
