Highlights
1.Electro-hydraulic reversing handle
Adopt electro-hydraulic reversing handle to ensure easy operation,reducing the labor intensity effectively
2.Instrument panel & meter display
Fix the instrument panel with concise meter on right side, ensure the driver read and understand easily.
3.New design overhead guard
Heightening overhead guard with big circular arc structure of front legs enlarge the operating space and expand visual field, reducing the driving fatigue.
4. New type wide view stable mast
Original imported German U-steel as optional together with advanced welding process and technology make the mast more stable and durable.
5.Security system
Equipped with OPS system as optional. When the operator leaves the seat during operation, the system will cut off the driving power to avoid accident happens.
Parameters
|

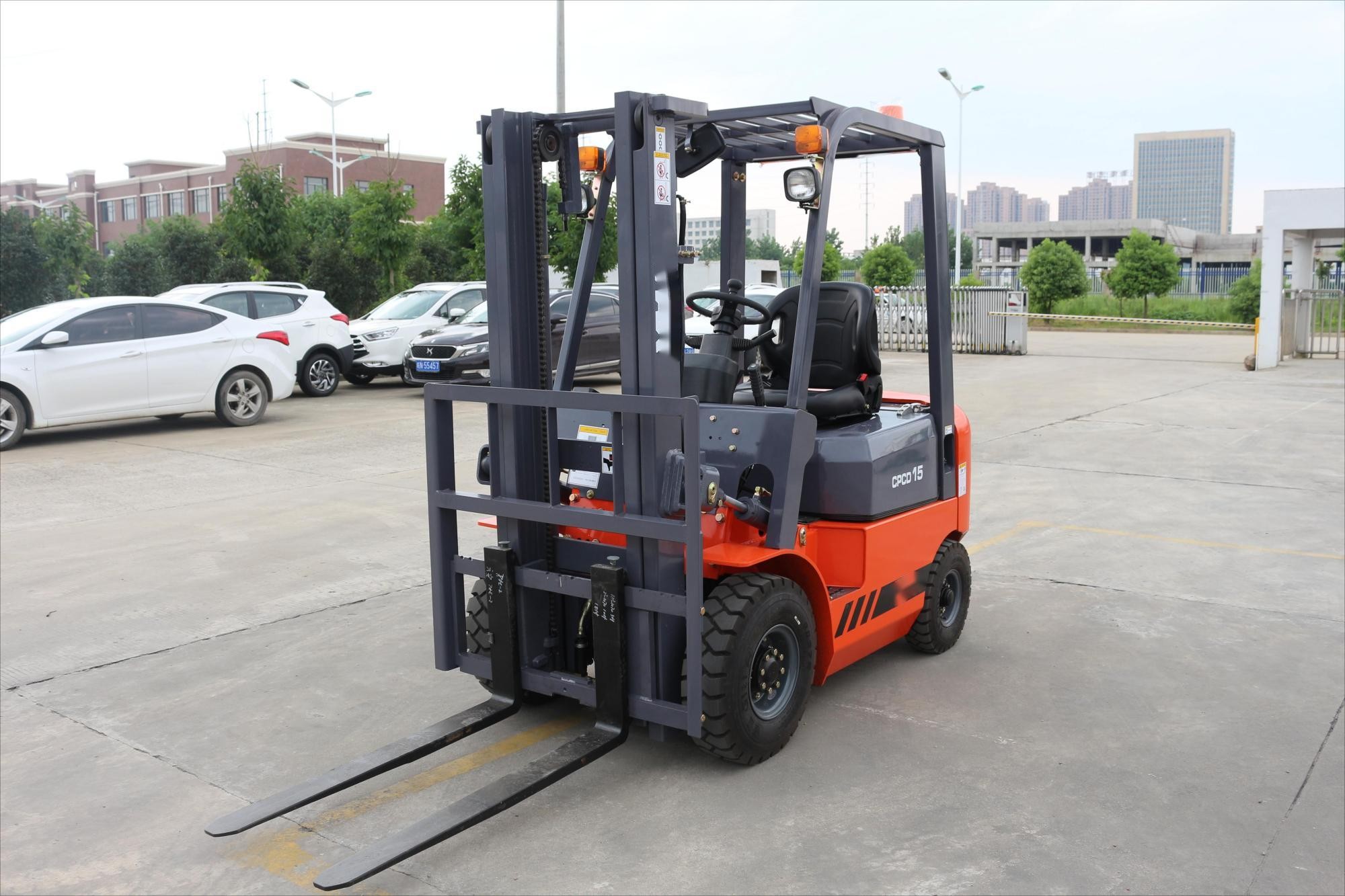

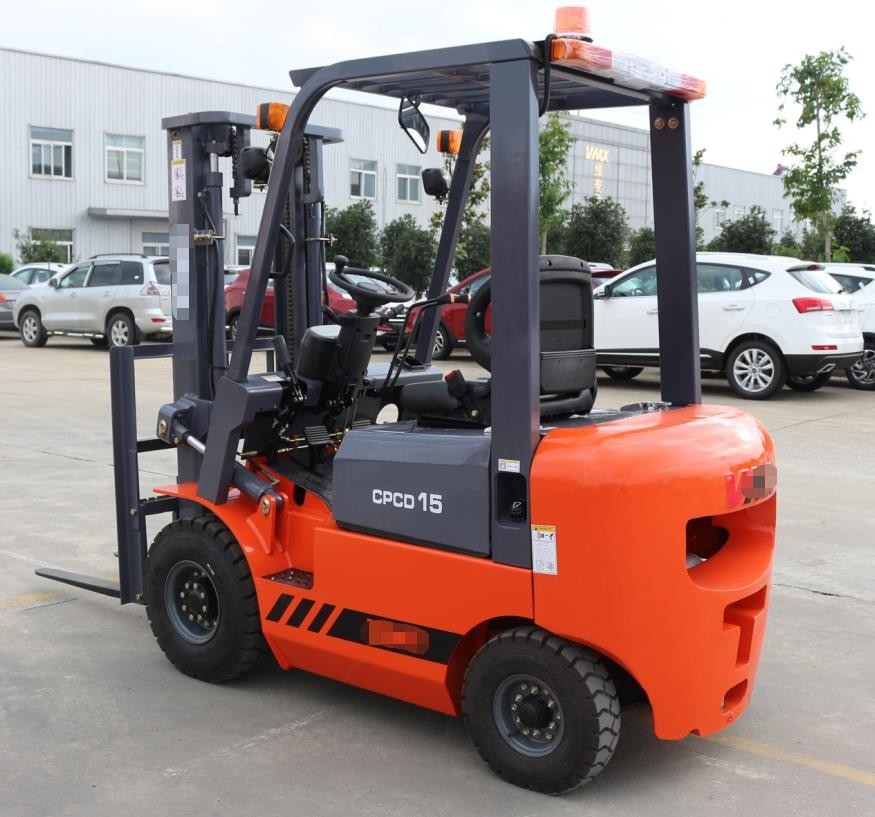

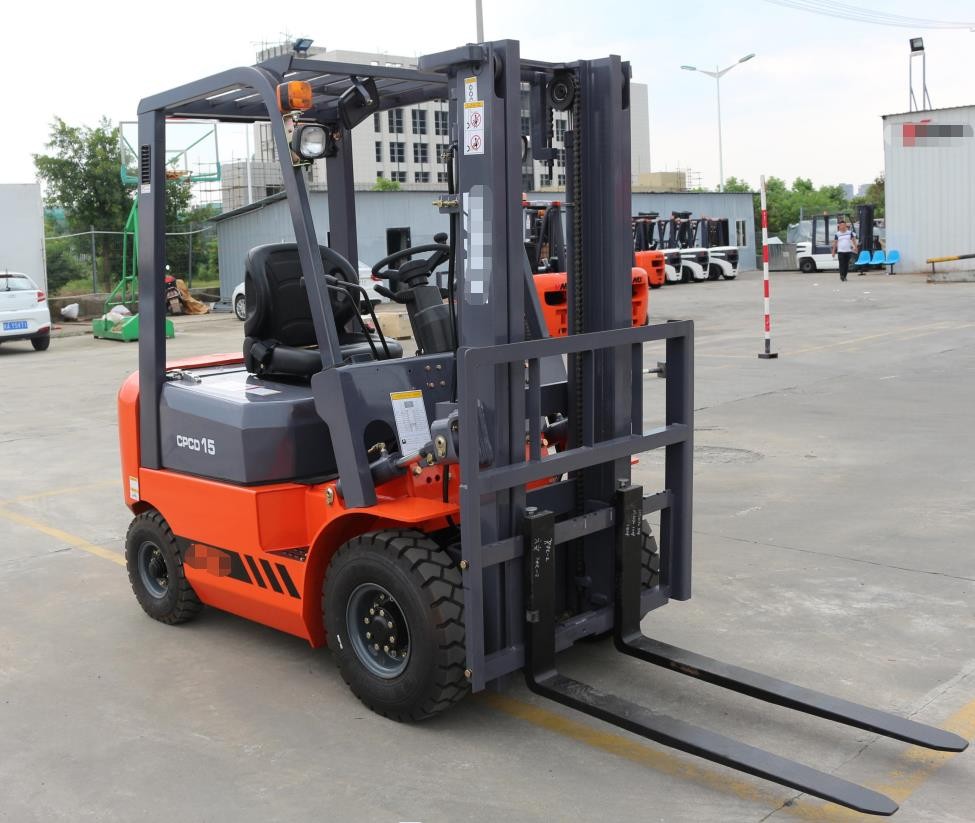

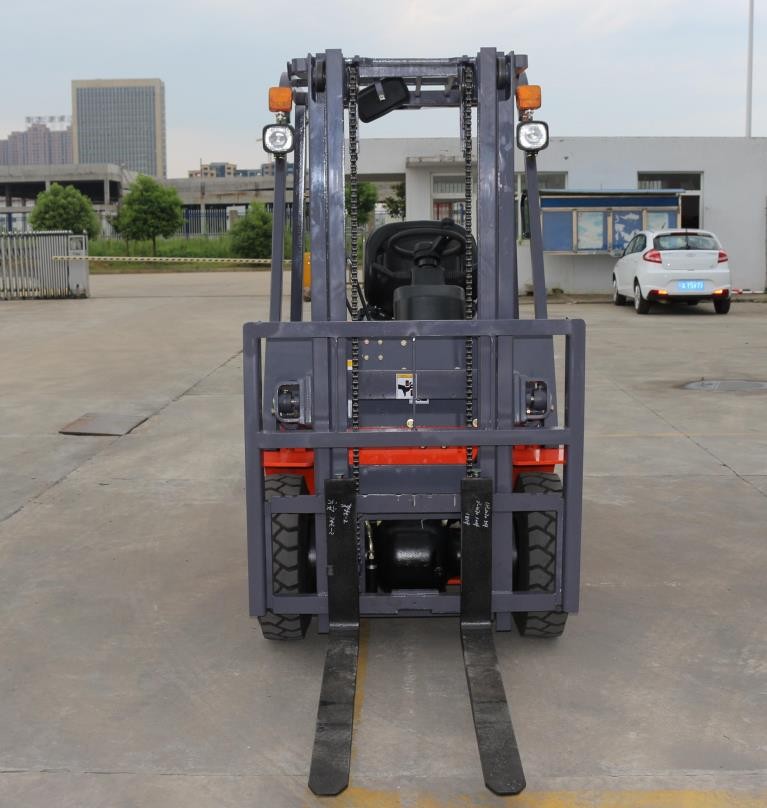

Model
|
|
CPC(D)15-X1
|
|
Power type
|
|
diesel
|
|
Rated capacity
|
kg
|
1500
|
|
Load center
|
mm
|
500
|
|
Mast Lifting height
|
mm
|
3000
|
|
Fork size
|
Length*Width*Thickness
|
mm
|
920x100x35
|
|
Tilting angles
|
Front/Rear
|
.
|
6/12
|
|
Min. Turning Radius
|
mm
|
2060
|
|
Min. intersecting stacking aisle
|
mm
|
3680
|
|
Min. intersecting aisle
|
mm
|
1865
|
|
Min. ground clearance
|
mm
|
100
|
|
Overhead guard height
|
mm
|
2040
|
|
Front overhang
|
mm
|
420
|
|
Max. driving speeds
|
km/h
|
14.5
|
|
Max. lifting speeds
|
mm/s
|
460
|
|
Max. grade ability
|
%
|
20
|
|
Length without fork
|
mm
|
2285
|
|
Overall width
|
mm
|
1070
|
|
Max. lift
|
mm
|
4030
|
|
Mast height
|
mm
|
1985
|
|
Tires
|
Front
|
mm
|
6.50-10-10PR
|
|
Rear
|
mm
|
5.00-8-10PR
|
|
Wheelbase
|
mm
|
1400
|
|
Tread
|
Front/ Rear
|
mm
|
890/920
|
|
|
Self-possessed
|
Kg
|
2680
|
|
Battery
|
Voltage/Volume
|
V/Ah
|
12/80
|
|
Engine
|
Model
|
|
NB485BPG
|
|
Rated output
|
kw/r.p.m
|
30/2600
|
|
Rated torque
|
Nm/r.p.m
|
131/1800
|
|
No.of cylinder
|
|
4
|
|
Displacement
|
L
|
2.27
|
|
Fuel tank capacity
|
L
|
45
|
