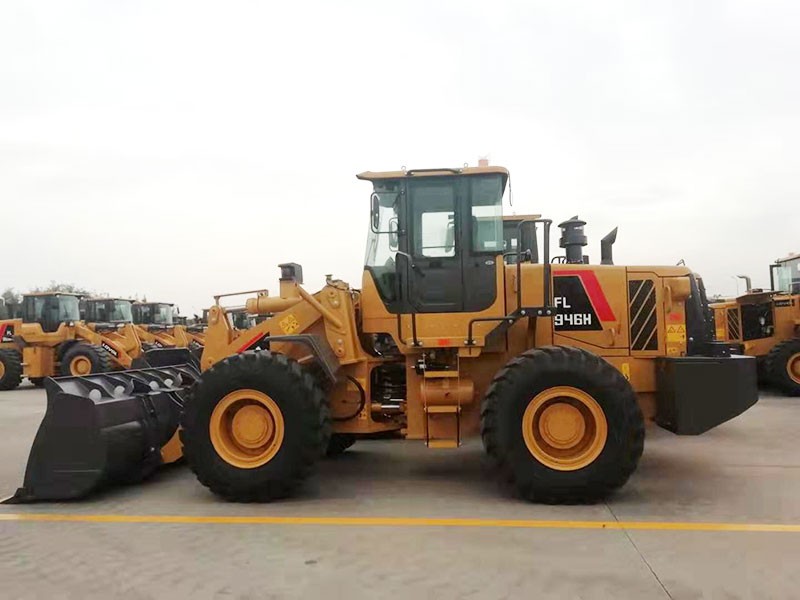

Wheel Loader FL946H

Highlights

*Equipped with 2.3m³ bucket which is easier to load, achieves greater fill factors and could retain more materials.

*High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.

*Low-effort joystick control system delivers high-efficiency operation with ease and fast.

Parameters

Item	Unit	Parameter
Rated Power	kW	118
Operating Weight	kg	13100
Bucket Capacity	m³	2.3
Engine Model	-	WEICHAI WP6G160E201
Max. Breakout Force	kN	130
Rated Load	kd	4000
Max. Traction Force	KN	124
Max. Gradeability	°	30
Max. Dump Clearance	mm	3020
Dump Reach	mm	1030
Wheel Tread	mm	2054
Wheelbase	mm	2880
Overall Dimension（L×W×H）	mm	7230×2770×3350
Type	-	Double pump flow conffluence, load-sensing hydraulic system
Steering Angle Each Direction	-	38º
Min. Turning Radius	mm	6110
Working Pressure	Mpa	16
Boom Lifting Time	s	5.8
Total Cycle Time	s	10
Fuel Tank	L	220
Hydraulic Tank	L	110
Engine Oil	L	20L
